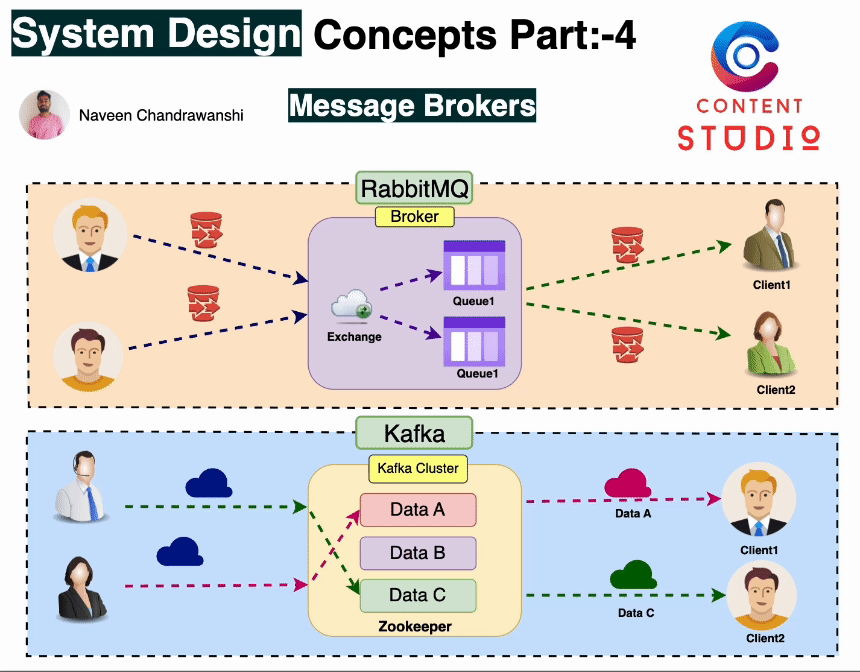

System Design Concepts Part:-4

Understanding RabbitMQ and Kafka: Powerhouses in Message Brokerage

In the realm of modern data processing and real-time communication, message brokers play a pivotal role in ensuring efficient, reliable, and scalable data transmission. Among the multitude of available solutions, RabbitMQ and Kafka stand tall, each offering unique features and capabilities that cater to diverse messaging needs.

What are RabbitMQ and Kafka?

RabbitMQ: The Versatile and Flexible Messaging Middleware

RabbitMQ, developed by the Rabbit Technologies team and now maintained by Pivotal Software, serves as a highly adaptable open-source message broker. It adheres to the Advanced Message Queuing Protocol (AMQP), making it versatile for handling diverse communication patterns. Its architecture, based on a queueing model, supports various message queuing paradigms, including point-to-point, publish-subscribe, and request-response.

RabbitMQ's strength lies in its ability to ensure message delivery, handling scenarios where messages need to be buffered, routed, and delivered reliably. It allows for flexible exchange types, such as direct, topic, fanout, and headers, facilitating different message routing patterns within systems.

Kafka: The Scalable and High-Performance Distributed Streaming Platform

Kafka, on the other hand, created by LinkedIn and now managed by the Apache Software Foundation, embodies a distributed streaming platform rather than just a traditional message broker. Kafka excels in handling real-time streams of data, offering fault tolerance, high throughput, and low latency.

Its architecture is based on a distributed commit log, allowing for robust scalability and parallel processing of large volumes of data across multiple nodes or clusters. Kafka operates around topics, logs, producers, consumers, and brokers, making it well-suited for building data pipelines, event-driven architectures, and streaming applications.

Key Features and Strengths

RabbitMQ:

• Message Durability: Ensures reliable message delivery with persistence options.

• Flexible Routing: Supports multiple exchange types for varied message routing needs.

• Ease of Use: Offers a friendly interface and wide language support for integration.

Kafka:

• Scalability: Designed for horizontal scaling across clusters, handling massive data volumes.

• Fault Tolerance: Maintains data integrity even in the event of node failures.

• Real-time Processing: Enables real-time stream processing with minimal latency.

Use Cases

RabbitMQ:

• Microservices Architecture: Ideal for inter-service communication in microservices-based systems.

• Task Queues: Handles task distribution and workload management efficiently.

• Workflow Management: Facilitates smooth workflow orchestration and task delegation.

Kafka:

• Log Aggregation: Consolidates log data from multiple sources for analysis and troubleshooting.

• Real-time Analytics: Powers real-time analytics pipelines for immediate insights.

• IoT Data Processing: Efficiently handles high-volume data streams from IoT devices.

Conclusion

In summary, RabbitMQ and Kafka stand as stalwarts in the domain of message brokers, each excelling in different scenarios. While RabbitMQ prioritizes flexibility and reliability in message queuing, Kafka shines in processing large-scale, real-time data streams. Understanding their strengths and matching them with specific use cases empowers organizations to build robust and scalable messaging architectures tailored to their needs.

The choice between RabbitMQ and Kafka ultimately hinges on the nature of data, scalability requirements, and the nuances of the use case. Both platforms significantly contribute to enhancing data flow, communication, and processing capabilities in today's data-centric world.

Remember, choosing the right message broker is a critical decision that significantly impacts the performance and efficiency of your system.

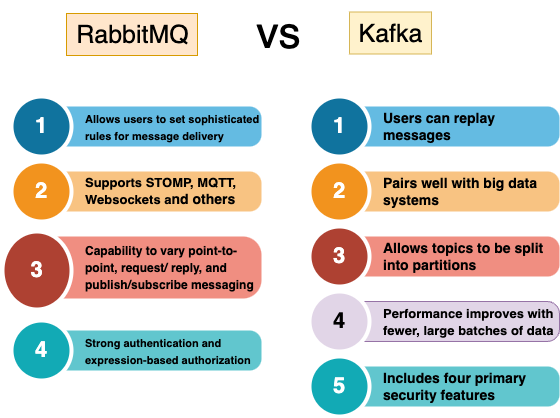

RabbitMQ vs. Kafka: A Feature-by-Feature Comparison

Allows users to set sophisticated rules for message delivery:

• RabbitMQ: Offers advanced message routing and delivery rules through exchanges and various exchange types, facilitating flexible message routing patterns based on rules defined by users.

• Kafka: Provides topic-based message organization and allows users to define partitioning strategies, but does not emphasize complex message delivery rules to the same extent as RabbitMQ.

Supports STOMP, MQTT, Websockets, and others:

• RabbitMQ: Extensively supports various messaging protocols like STOMP, MQTT, and WebSockets, enhancing its flexibility for communication between different applications and devices.

• Kafka: Primarily relies on its own native protocol and does not offer built-in support for other messaging protocols like STOMP or MQTT.

Capability to vary point-to-point, request/reply, and publish/subscribe messaging:

• RabbitMQ: Excels in supporting different messaging patterns including point-to-point, request/reply, and publish/subscribe, offering flexibility in handling various communication paradigms.

• Kafka: Mainly focuses on publish-subscribe messaging patterns and log-oriented data processing, with less emphasis on request/reply or point-to-point messaging.

Strong authentication and expression-based authorization:

• RabbitMQ: Provides robust security features with strong authentication mechanisms, supporting expression-based authorization for fine-grained access control to resources.

• Kafka: Offers security features such as authentication and authorization but might not have the same level of fine-grained expression-based authorization as RabbitMQ.

Allows topics to be split into partitions:

• RabbitMQ: Doesn't inherently partition topics; instead, it relies on exchanges, queues, and bindings to route messages based on rules.

• Kafka: Topics can be split into partitions, enabling parallel processing and scalability, allowing each partition to be replicated across multiple brokers for fault tolerance.

Performance improves with fewer, large batches of data:

• RabbitMQ: Generally better suited for handling smaller-sized messages, whereas the performance might vary with very large message sizes or batch processing.

• Kafka: Shows superior performance with fewer, larger batches of data due to its log-oriented design, which optimizes disk I/O and allows for efficient batch processing.

Includes four primary security features:

• RabbitMQ: Offers security features such as SSL/TLS encryption, access control through users and virtual hosts, and fine-grained authorization controls.

• Kafka: Provides security features including SSL encryption, authentication, and authorization, enabling secure communication within the Kafka cluster.

Users can replay messages:

• RabbitMQ: Lacks inherent message replay capabilities, as its focus is more on message queuing and reliable delivery rather than log storage and replay.

• Kafka: Supports message replay, allowing consumers to re-consume messages from any point in the log, which is advantageous for debugging and reprocessing past events.

Pairs well with big data systems:

• RabbitMQ: Fits well within various application architectures but might require additional components for seamless integration with big data systems.

• Kafka: Is well-known for its integration with big data ecosystems due to its log-centric design, making it suitable for real-time stream processing and analytics in big data pipelines.

---

This comparison aims to elucidate the distinctive features and functionalities of RabbitMQ and Kafka, aiding in decision-making based on specific use cases, messaging requirements, and system architectures.
